AD3 300

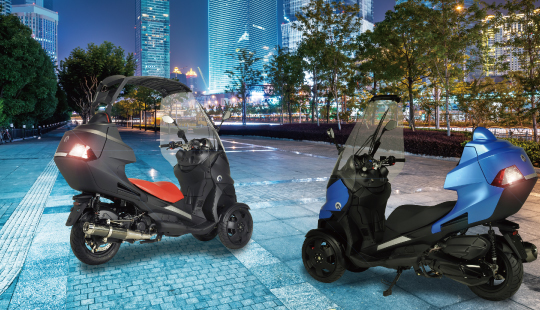

Adiva Urban Commuter for the Next Stage
The AD3 series promise excellent road holding in all weathers and greater safety when dealing with the problems of driving in big cities, such as tracks, cobbles and drain covers. The fact that they are closer to the ground, their suspension, an excellent chassis and two front wheels mean they can take corners more quickly and more precisely.

AD3 300

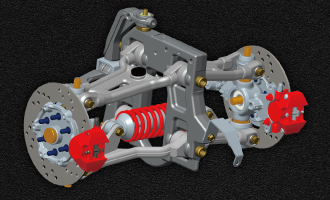

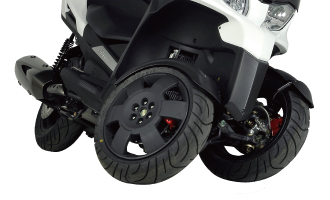

Independent Wishbone Suspension Front Independent Tilting Suspension system of AD3 promise excellent road holding in all weathers and greater safety when dealing with the problems of driving in big cities, such as tracks, cobbles and drain covers.

AD3 300

Modular Protection System Adiva Patented System of Modular Protection with Foldable Roof System + Large Windshield offer you confortable Riding in all weather conditions.

AD3 400

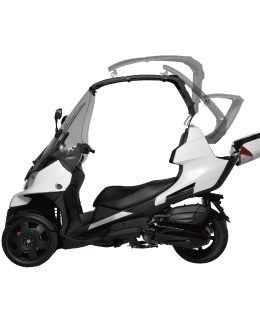

Foldable Roof System
Patented system of modular protection which allows the driver to fold in few seconds the roof back in the rear box. the driver is therefore able to choose the best configuration of the vehicle depending from weather conditions and riding preferences.

AD3 300

Large Widnshield

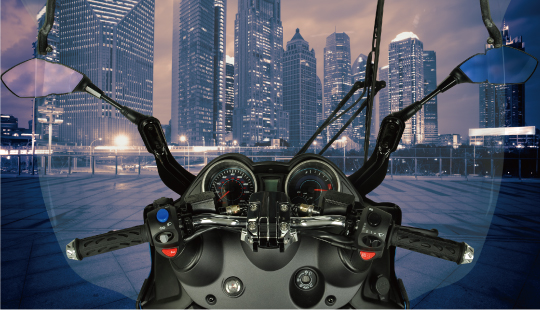

UV Protected Windshield with the wiper improves dramatically the visibility under wet conditions, while representing at the same time a further source of urban commuter safety.

AD3 300

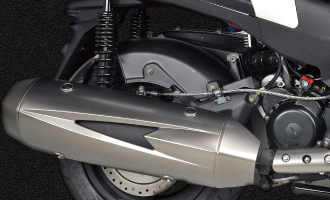

SOHC 4-Valves Liquid Engine Powered by SOHC 300cc / 200cc Engine with Fuel Injection System offer you Excellent fuel efficiency and Smooth acceleration.

AD3 300

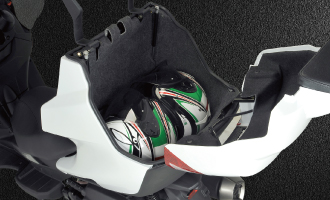

Large Storage Capacity AD3 offers you plenty of space in its boot and glove compartment with the front innver box, and the rear trunk with 90-litre capacity can accommodate two full-face helmets.

AD3 300

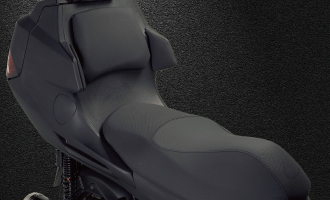

Comfortable Seat 740mm height stable seat with smooth open and close system.

AD3 300

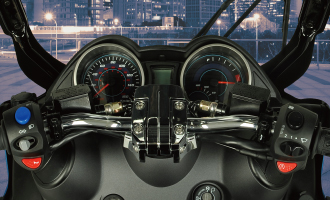

Digital Multi LCD Dashoborad Easy viewable simple design with digital speed meter, fuel, and water temperature gage.

AD3 300
ENGINE TRANSMISSION
ENGINE single cylinder four-cycle
DISPLACEMENT 299 cc
BORE X STROKE 72,7 x 72 mm
MAX POWER 21,9kw @ 7750 rpm
MAX TORQUE 30,1 Nm @ 6250 rpm
GASOLINE unleaded petrol
LUBRICATION
ENGINE START electric start
COOLING water-cooled
GEAR CVT with automatic clutch
WHEELS
TYRES front 130/60 x 13», rear 150/70 x 13» tubeless
RIMS 5 spokes aluminium rims, front 3.50 x 13″, rear 4.00 x 13″
FRONT BRAKE double 220 mm disc brake
REAR BRAKE 240 mm disc brake
FRAME
FRAME high-resistance steel pipe and traily mixed frame
FRONT SUSPENSIONS single two-ways shock absorber
REAR SUSPENSIONS engine behaving structural, double rear two-ways shock absorbers preload adjustable on 5 positions
SIZES
LENGTH 2180 mm
WIDTH 700 mm
HEIGHT 1759 mm
SEAT HEIGHT 700 mm
WHEEL BASE 1560 mm
DRY WEIGHT 202 kg
GASOLINE TANK 12,2 litres (2,0 litres reserve)
HOMOLOGATION
FUEL CONSUMPTION ON BENCH 22km/l;
HOMOLOGATION Euro 3
ACCESSORIES Roof deflectors Thermo scud Luggage’s strap Rear spoiler Side spoilers Heater Roll-lock system
